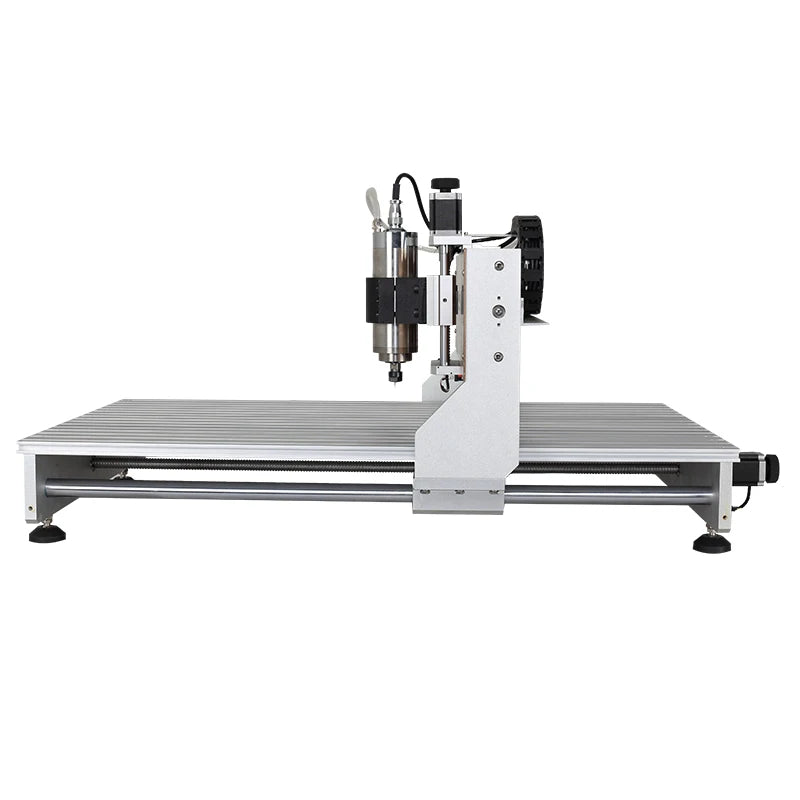

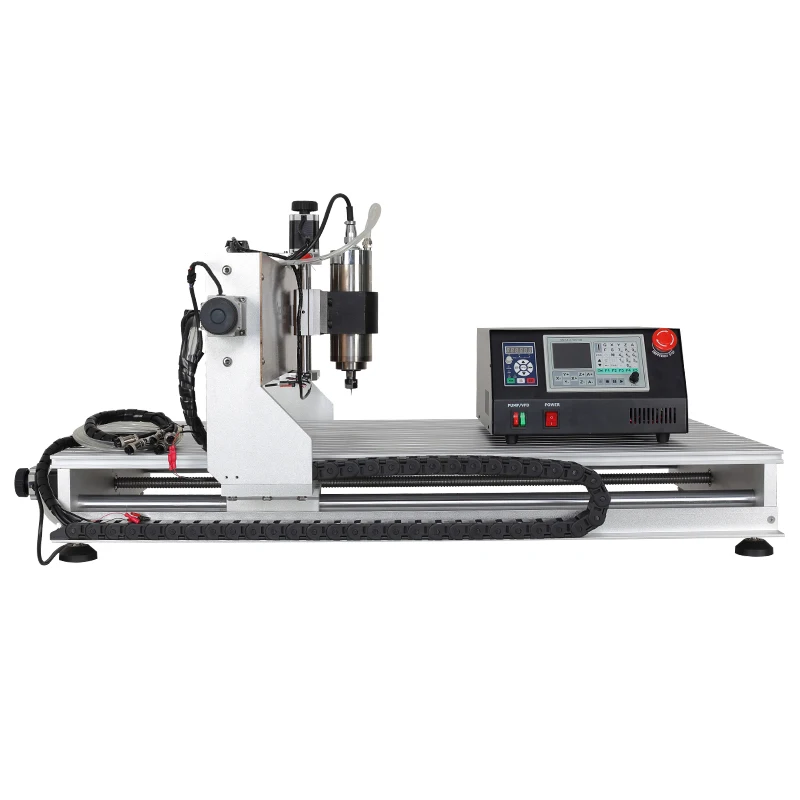

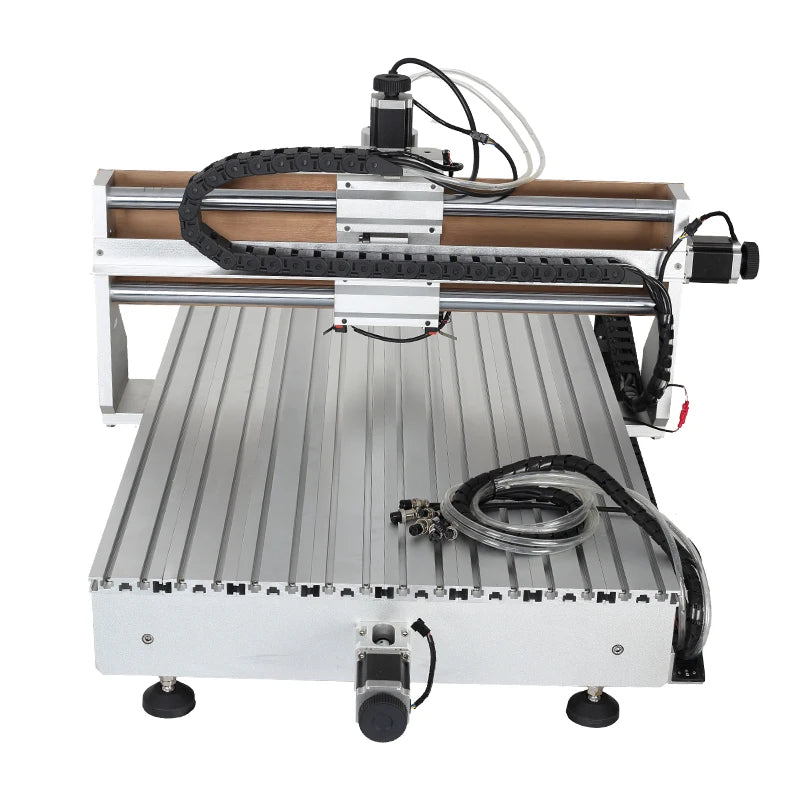

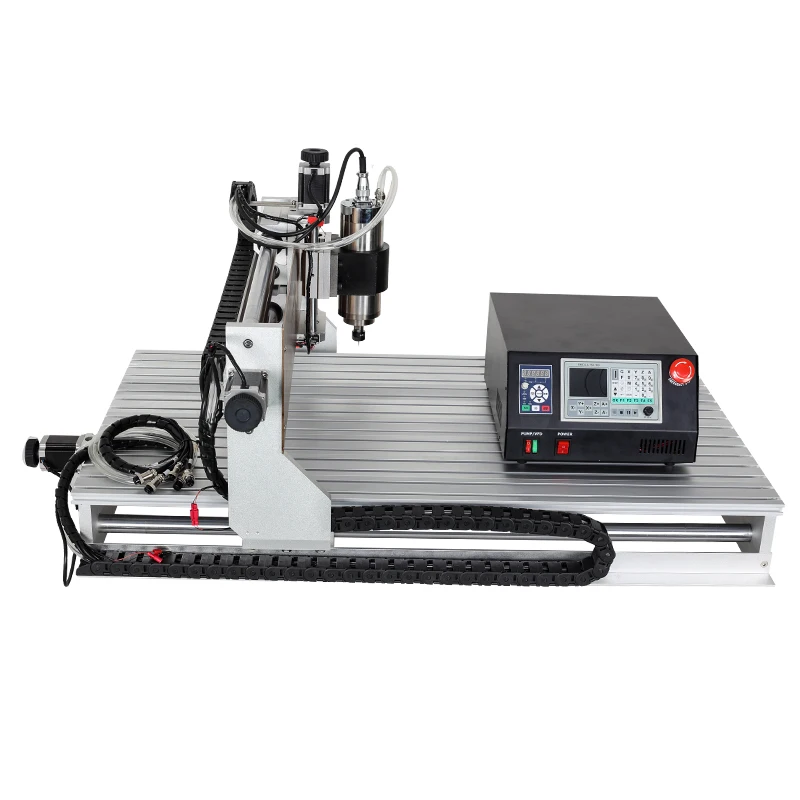

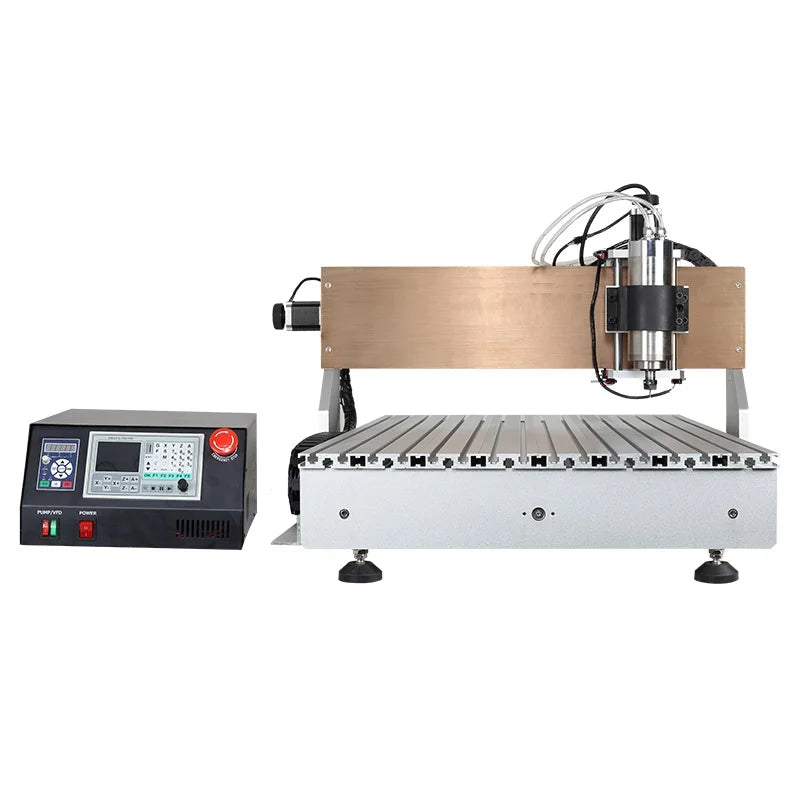

1500W Spindle DSP Cnc Metal Router 6090 Aluminium Cutting Engraving Water Cooling Carving Ball Screw Router
1500W Spindle DSP Cnc Metal Router 6090 Aluminium Cutting Engraving Water Cooling Carving Ball Screw Router
Verfügbarkeit für Abholungen konnte nicht geladen werden
SPECIFICATIONS
After-sales Service Provided: Online support
Carving Instructions: G code/ TAB files/ nc file/ NCC files
Carving speed: 0-2500mm/min(different materials differ)
Command code: G code
Max.workpiece dimension: X600mm*Y900mm*Z150mm
Maximum speed: 4000mm/min
No. of Spindles: Single
Shape dimension: X890mm*Y1250mm*Z670mm
Spindle Motor Power (kw): 1.5
Spindle collet: ER11
Spindle motor: 1.5kw water cooling spindle
Spindle precision: Radial beat acuities 0.03 mm
brand name: FUNDAR
cnc or not: CNC
dimension(l*w*h): X890mm*Y1250mm*Z670mm
key selling points: Easy To Operate
machine type: CNC Router
number of axes: 4
place of origin: Guangdong, China
positioning accuracy (mm): 0.05
range of spindle speed(r.p.m): 0 - 24000 rpm
repeatability (x/y/z) (mm): 0.05
travel (x axis)(mm): 600
travel (y axis)(mm): 900
voltage: 110V/220V
warranty: 3 Years
weight (kg): 162
1500W Spindle DSP cnc metal router 6090 Aluminium Cutting engraving Water Cooling Carving Ball Screw Router

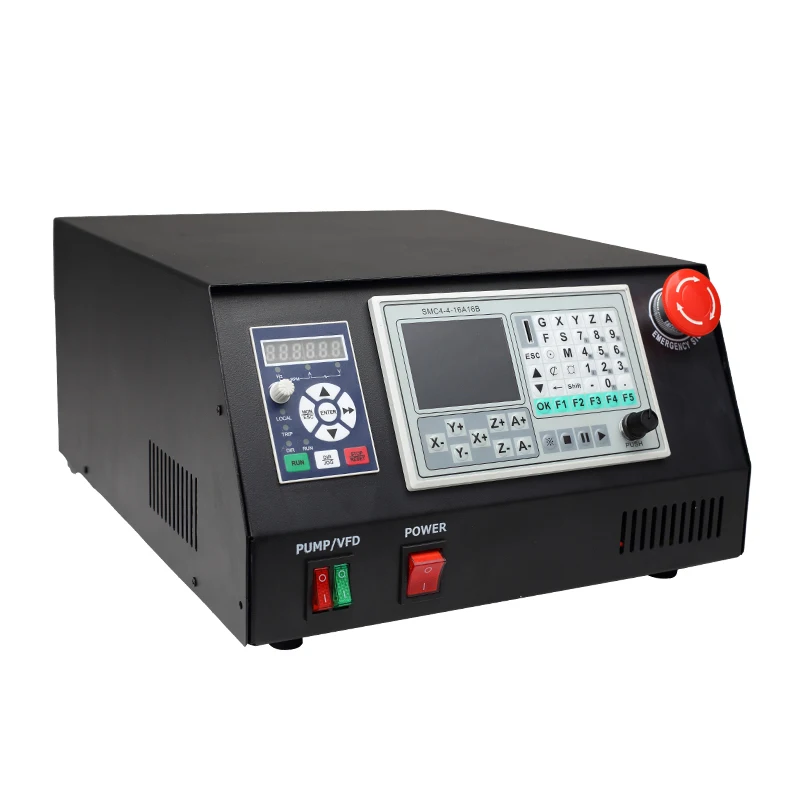

Advantages for the New DSP Control System
* Independent DSP system, work without a computer.
* Insert TF memory card, automatic reading and processing files.
* By operating the control box, you can program and carving directly.
* G-code files can be directly edited, delete, insert, and so on.
Easy operating because:
* With DSP controller box, no need to connect with any computer or notebook.
* Work independently.
* SD card slot interfaceWith SD card slot interface.
* 1.5KW water-cooled spindle, powerfu!
* Fast working speed.
* Live video support on Youtube.
Other main featurers of this DSP CNC 6090
* English manual available.
* Can engrave material such acrylic, brass, wood, aluminum, PCB and so on.
* Balls crew made it a higher precision.
* 4th axis can be Plug-and play, no need to replace controller box.
* Auto-Checking function, easy to set origin of Z axis.
* With built-in frequency converter in control box.
* It has a broad-base and a thicker screw for larger material working.
* Limited switches added.
* From reliable & trustable profesional China CNC Router factory.
This DSP CNC 6090 can be widely used
A. Widely used not only for Aluminum but also acrylic, brass, wood, PVC, PCB, MDF,metal and so on.
B. Ideal for milling, engraving, drilling & routing.
C. For Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes, Building Model Making, Advertising Signs, Artwork, Crafts,Aircraft Models, RC Model parts
|
Shape dimension |
X890mm*Y1250mm*Z670mm |
|
Max.workpiece dimension |
X600mm*Y900mm*Z150mm |
|
Frame materials |
aluminum alloy 6063 and 6061 the unique and dedicated mold extrusion profiles. let counterfeiters dwarfs |
|
Acceptable material thickness |
≤150mm |
|
Driving units |
X: 1605 ball screw |
|
Y: 2005 ball screw |
|
|
Z: 1605 ball screw |
|
|
Sliding units |
X: Dia.30mm chrome plate shafts |
|
Y: Dia.30mm chrome plate shafts |
|
|
Z: Dia.16mm chrome plate shafts |
|
|
Stepping motor type |
57-76 two-phase 3A 150N.cm |
|
Spindle motor |
brand new 1.5kw water cooling spindle, 24000RPM |
|
Spindle collet |
ER20-A, 3-10 mm shank diameter tool |
|
Repeat accuracy |
<=0.05mm |
|
Spindle precision |
Radial beat acuities 0.03 mm |
|
Carving Instructions |
G code/ TAB files/ nc file/ NCC files |
|
Maximum speed |
4000mm/min |
|
Carving speed |
0-2500mm/min (different materials differ) |
|
Command code |
G code |
|
Protection |
Emergency stop button |
|
Operating Voltage |
AC110V/AC220V |
|

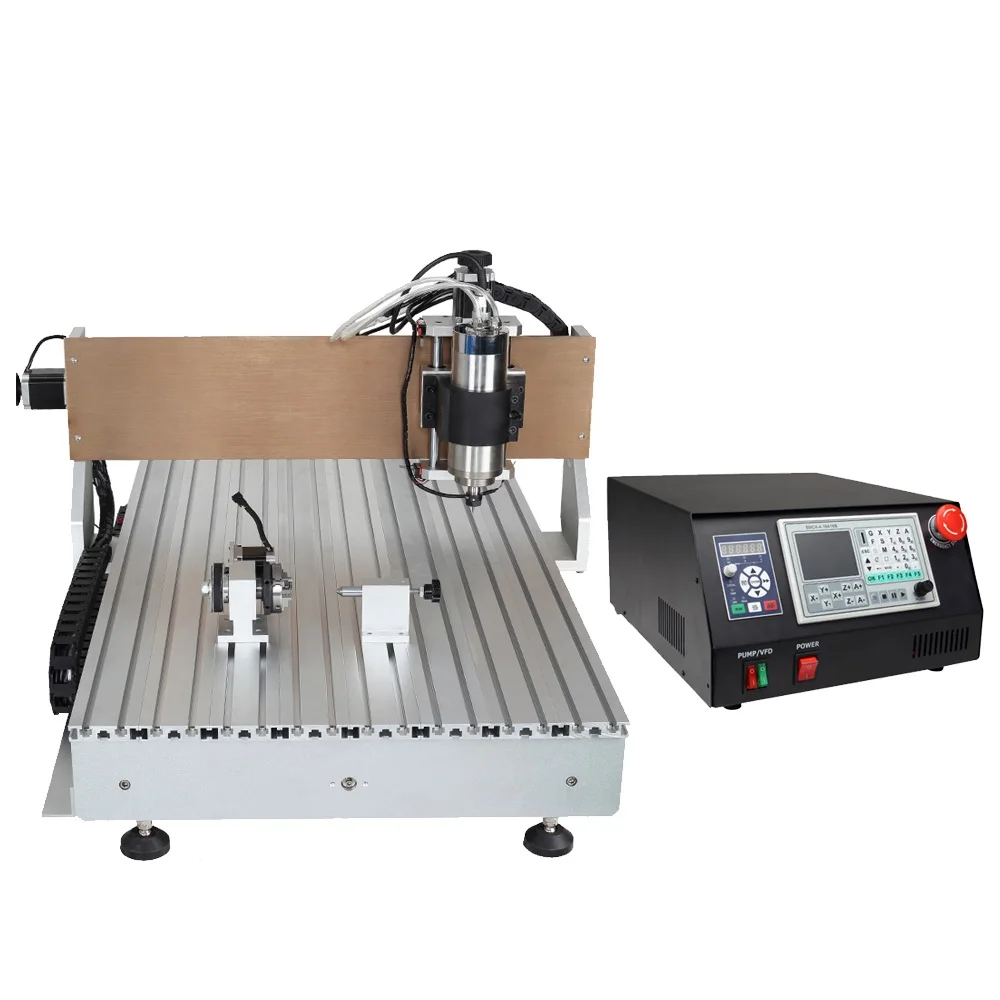

The 4th axis |
|
|
Size |
136*116*92 mm |
|
Centre-height |
34mm |
|
Clamping diameter |
50mm fingertight fitting |
|
Reduction tatio |
1:03 |
|
Error Range |
0.1 |

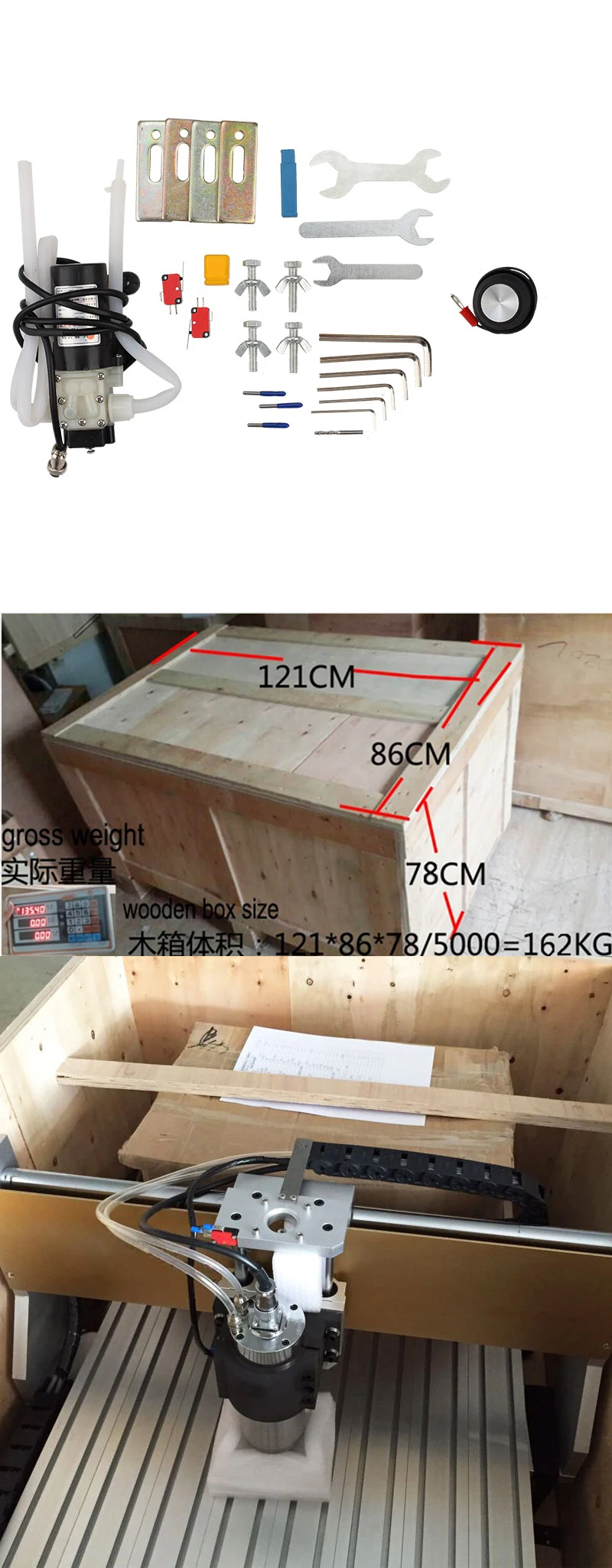

Package:
1 Engraving machine
1 Rotary axis

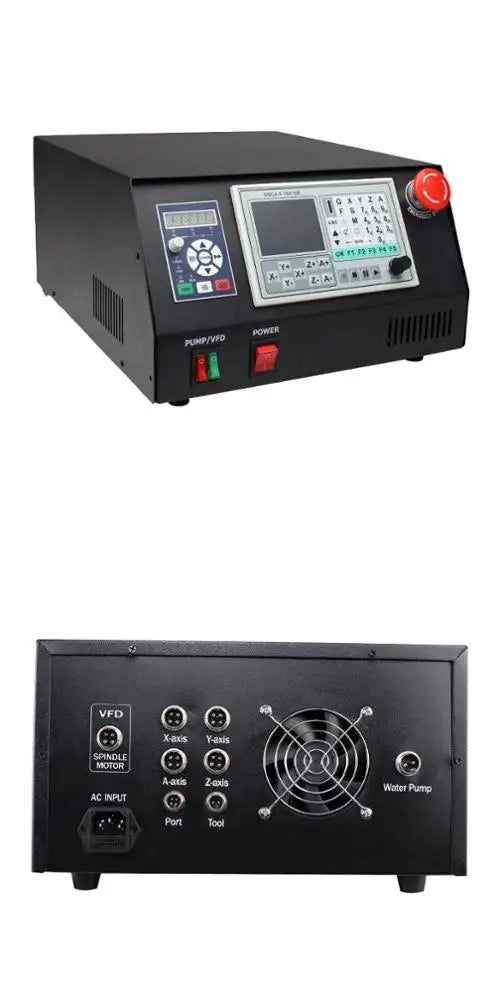

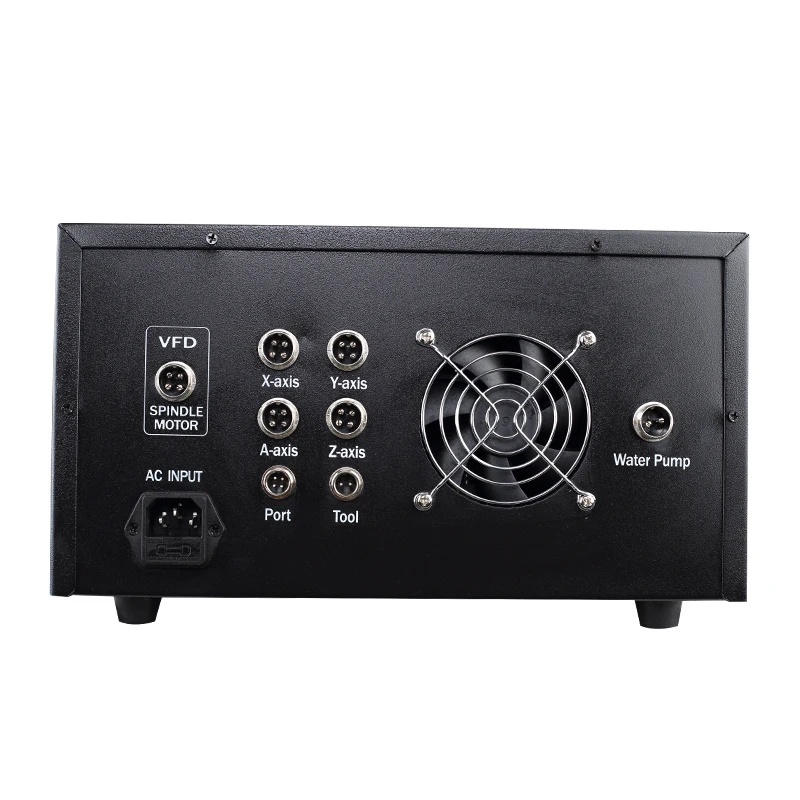

1 Controller box with invertor installed in it
1 1500w spindle
1 Power cable
1 Water pump
4 Engraving bit
2 Limited switch
1 Auto-checking tool
1 set of clamp tool
